Plate Rolling Machine|Sheet Bending Machines in Saudi Arabia

Product Highlights

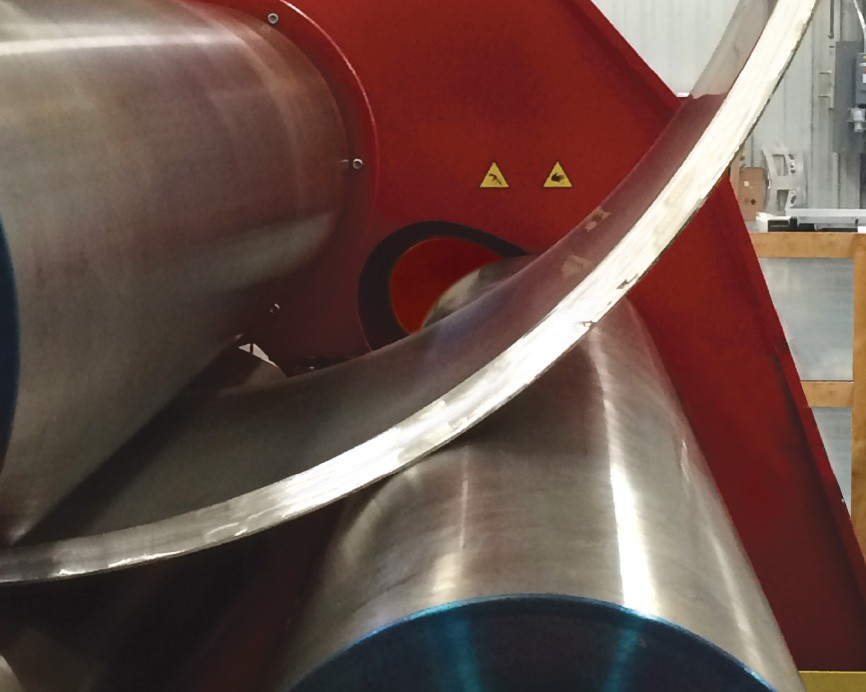

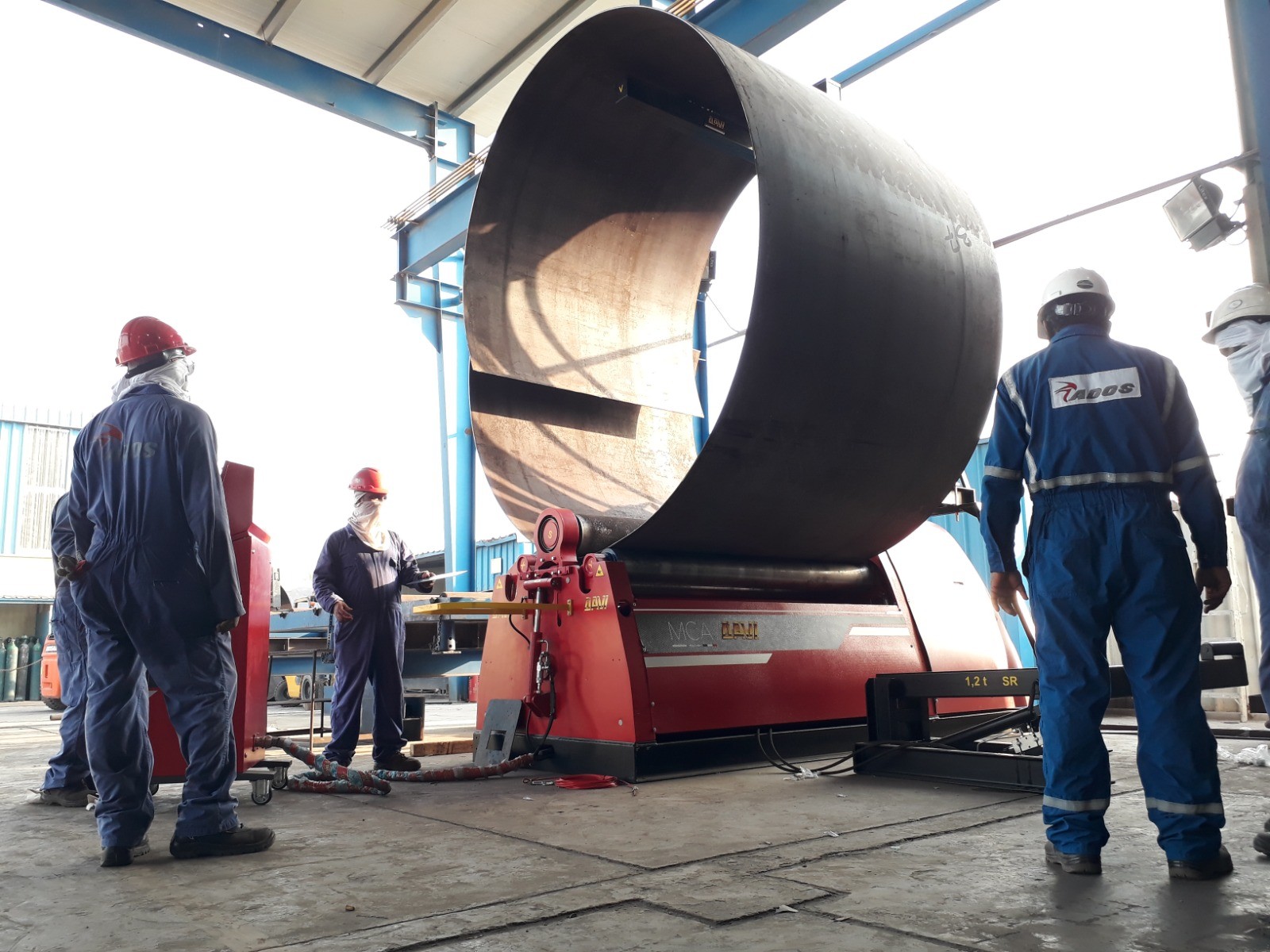

Plate rolling machines are used for metal forming—meaning they form flat sheets into cylindrical shapes without actually cutting the metal. They employ rotating rollers and controlled pressure to produce precise shapes from cylinders, cones, arcs, and unique curved structures out of flat metal sheets. These machines are often used in sheet metal fabrication for fast manufacturing of uniform shapes, particularly in high-volume manufacturing applications.Features - High-precision sheet and pl...

Features

- High-precision sheet and plate bending

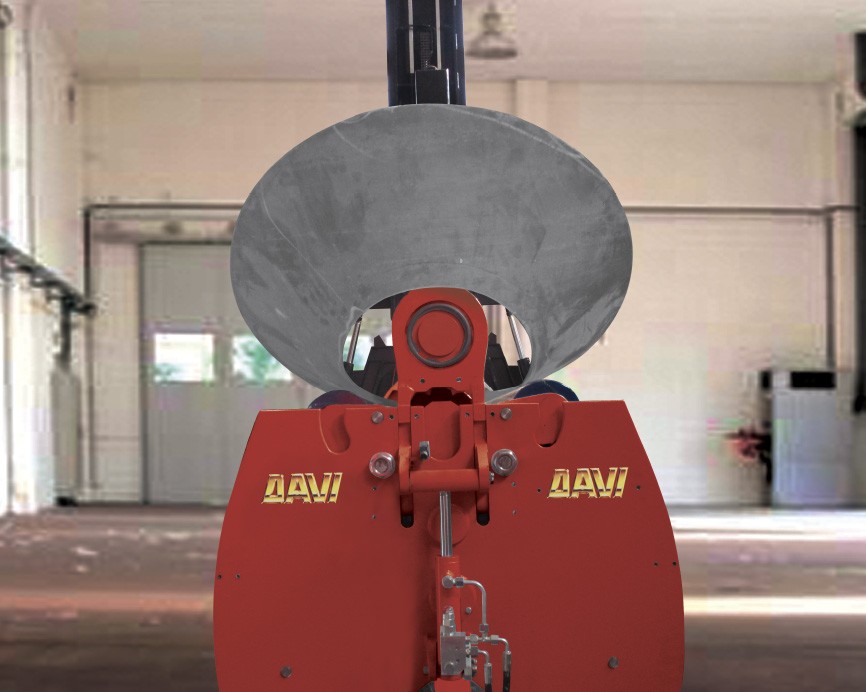

- Capable of forming cylinders, cones, and curved profiles

- Available in 3-roll and 4-roll configurations

- Hydraulic, mechanical, or CNC-controlled operation

- Adjustable roller positions for different bending radii

- Suitable for thin, medium, and thick metal plates

- Heavy-duty steel construction for industrial use

- High torque and bending force for large workpieces

- Smooth and consistent rolling performance

- Ability to pre-bend plate edges, reducing welding requirements

- User-friendly control systems for accurate operation

- Variable speed control for different materials and thicknesses

- Supports a wide range of metals, including steel, stainless steel, aluminum, and copper

Applications

- Manufacturing storage tanks and pressure vessels

- Fabrication of pipes, tubes, and cylindrical sections

- Production of silos and industrial containers

- Construction of boilers and heat exchanger shells

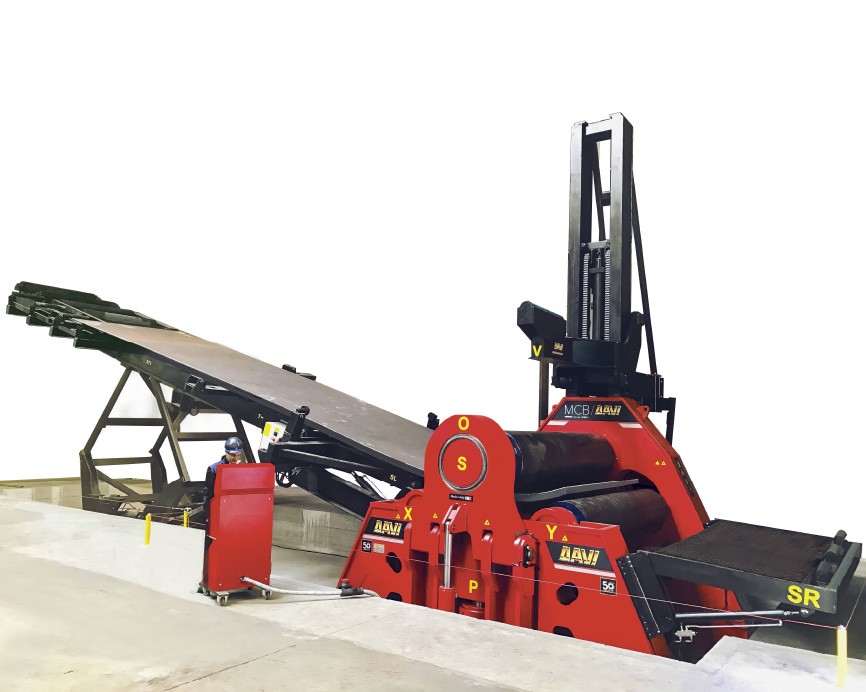

- Wind tower and renewable energy component manufacturing

- Shipbuilding and marine structure fabrication

- Structural steel bending for bridges and buildings

- Fabrication of chimneys, ducts, and ventilation systems

- Production of fuel tanks and water tanks

- Manufacturing of metal drums and containers

- Creation of architectural arches and curved facades

- Aerospace structural component fabrication

- Automotive component manufacturing

- Oil and gas equipment production

- Heavy engineering and metal fabrication workshops

YES Machinery has partnered up with the Italian global experts and manufacturers of heavy-duty plate rolls, DAVI, the most prominent manufacturer of sheet bending machines, sheet rolls, and customized sheet-rolling machines. With its inception in 1966, it has provided excellent leadership and production in the industry.

Product Range

DAVI's range of product lines includes powerful plate rolls (3 and 4 rolls) for plates 2-6 m in width. 6 - 400 mm thickness, impressive robotic lines, and productivity of four rolls (1 - 6 m width and 2 - 15 mm thickness); uniquely tailored machines for aircraft, shipyards, and tank trailers that go beyond 6 - 24 mm in width.

Both three-roll and four-roll plate-rolling machines are also offered by DAVI, and an MAV version with variable geometry rolling machines is also available. The MCO is a three-roll double-pinch rolling machine.

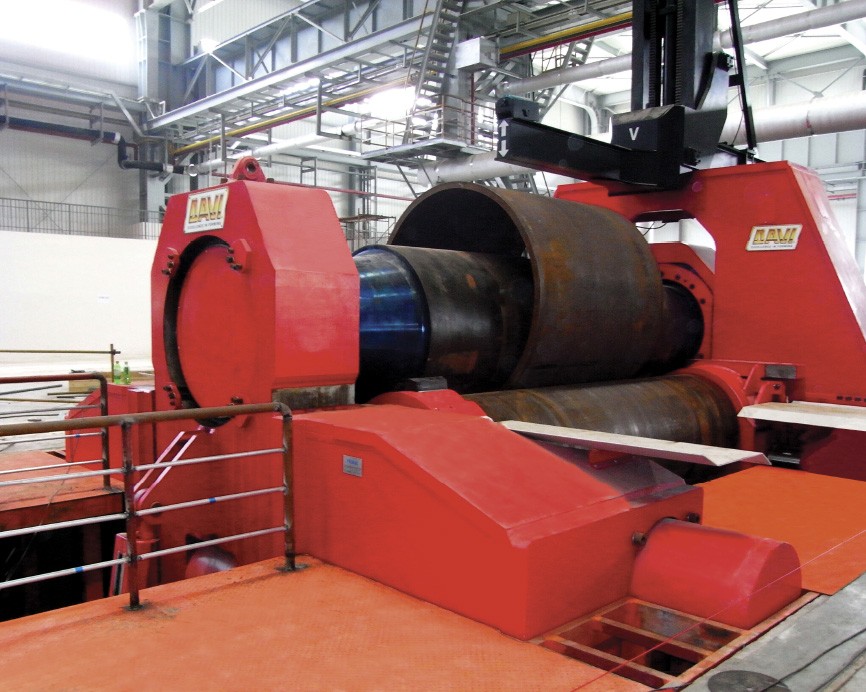

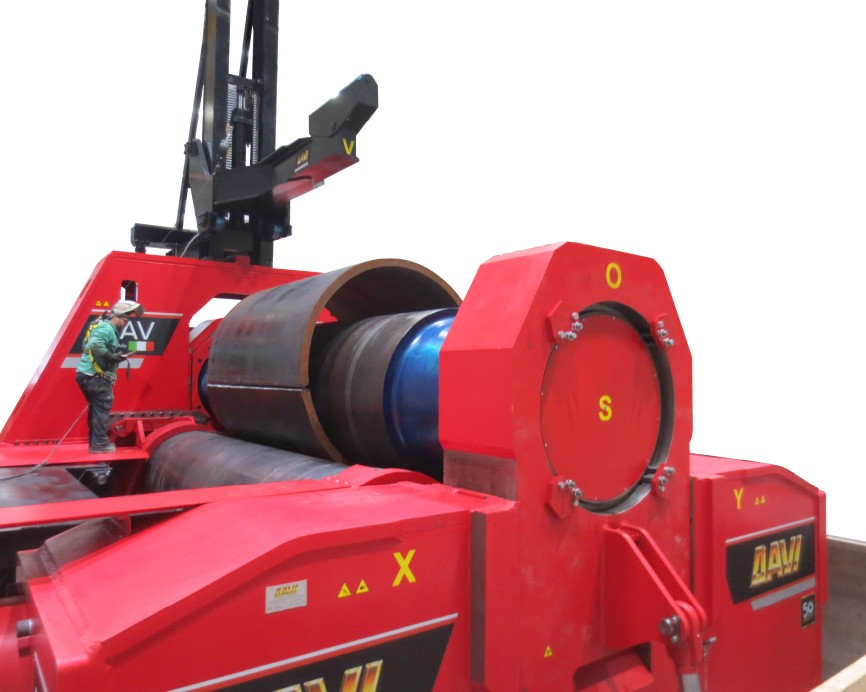

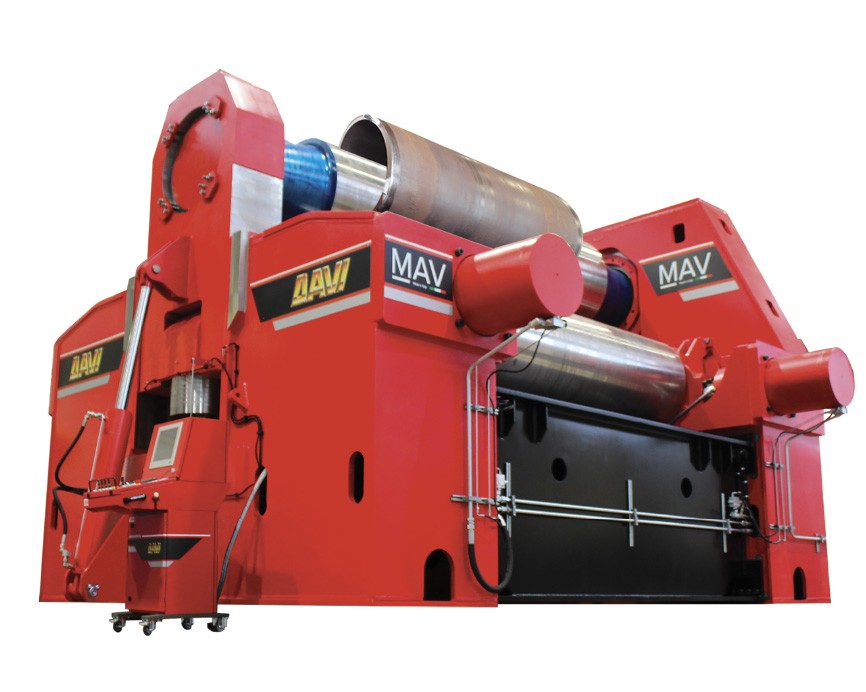

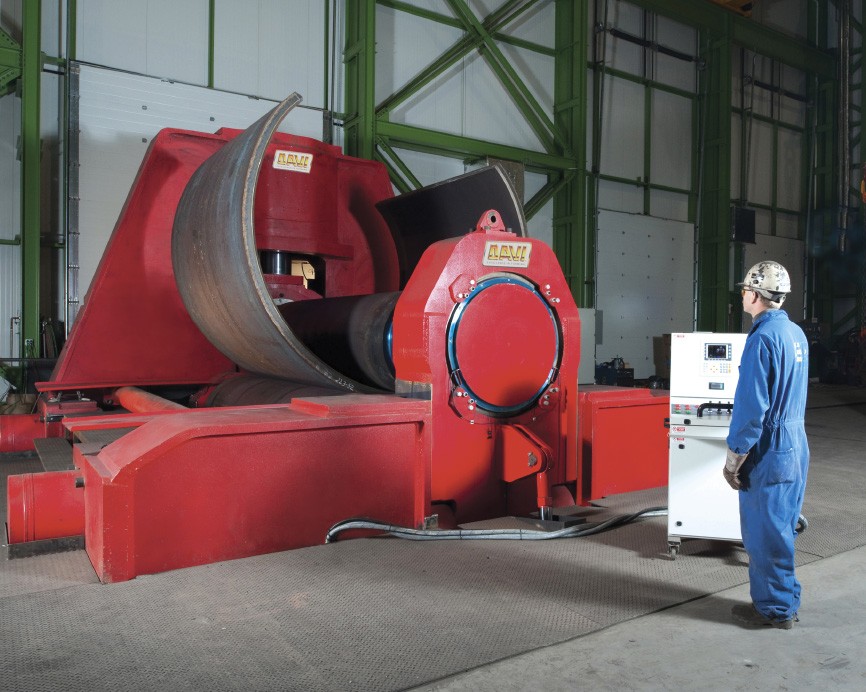

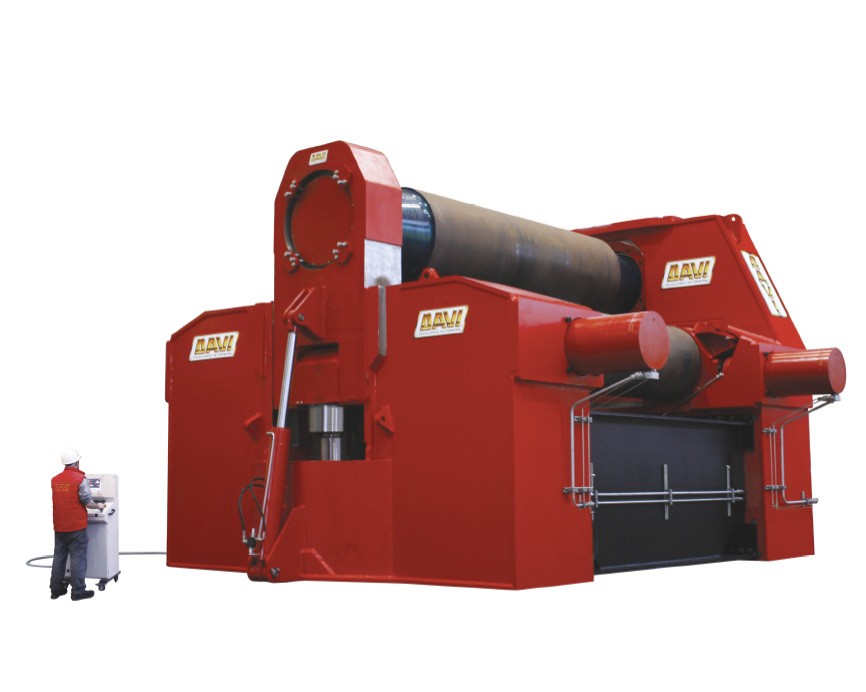

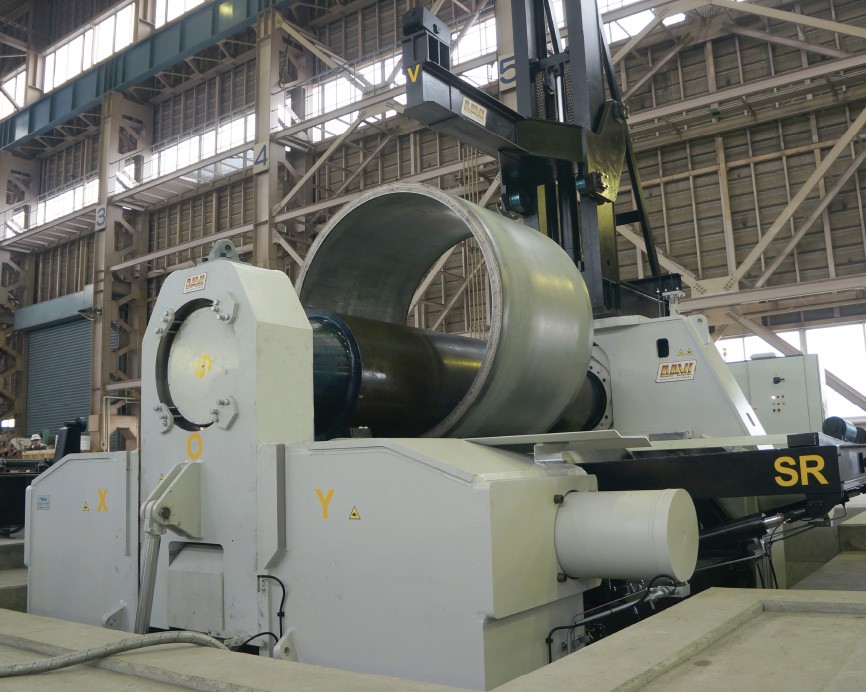

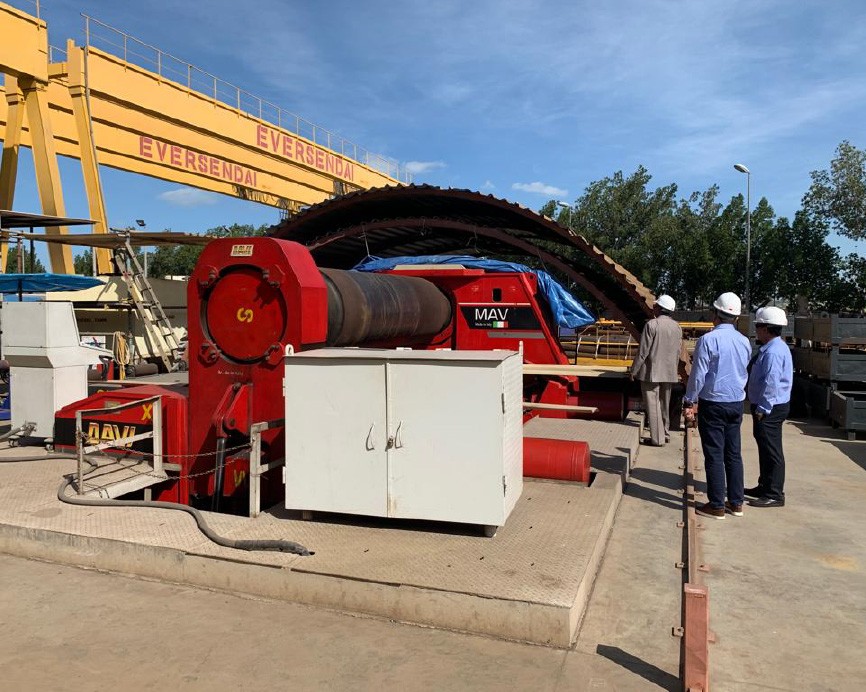

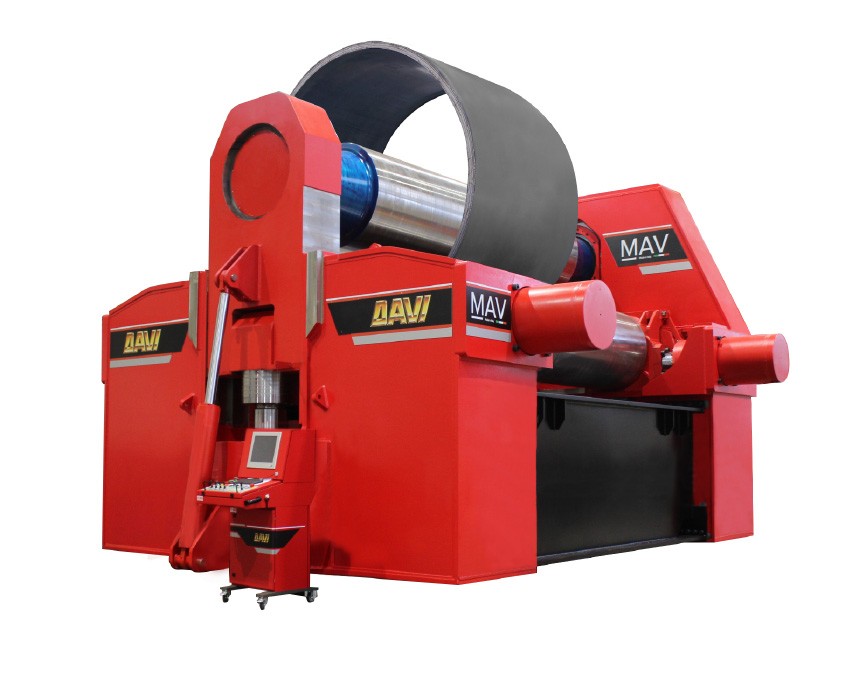

The independent movement of side rolls and optimization of the geometry for all applications are possible in the MAV. The precise positioning of the side rolls reduces the flat, resulting in one of the shortest flat ends for all thicknesses. This is possible because of the variable geometry. The machine can quickly produce thicker plates when completely opening the side rolls and increasing the bed. The independent movement of all three rolls gives way to excellent geometry for all angles of the cone. This is the best plate roll for thickness beyond 60 - 80 mm(2 - 3 inches).

With its exclusive benefits and super heavy-duty applications, this is the machine you've been looking for.

The MCO line comes in the most ordinary, industry-standard design. Its top roll is embedded, and the two side rolls that can be moved up and down to “pre-bend the edges” and the ability to roll plates make them competitive. The economical roll is ideal for processing plates ranging from 15-20 mm (5/8 - 3/4 inch) to 80-100 mm (3 - 4 inches) in thickness. It's a perfect choice for applications with limited production volumes. Called a Double Pinch, the bending of both ends is done without removing materials from the machine itself(this can never be done on a single initial pinch and uneven design). The roll design features a wide range of side roll movement, enabling efficient pre-bending of both edges. This spacious working area allows for processing larger-diameter bars than traditional roll designs.

Product Models

Regarding the four roll models, DAVI offers two versions, the MCA and the MCB.

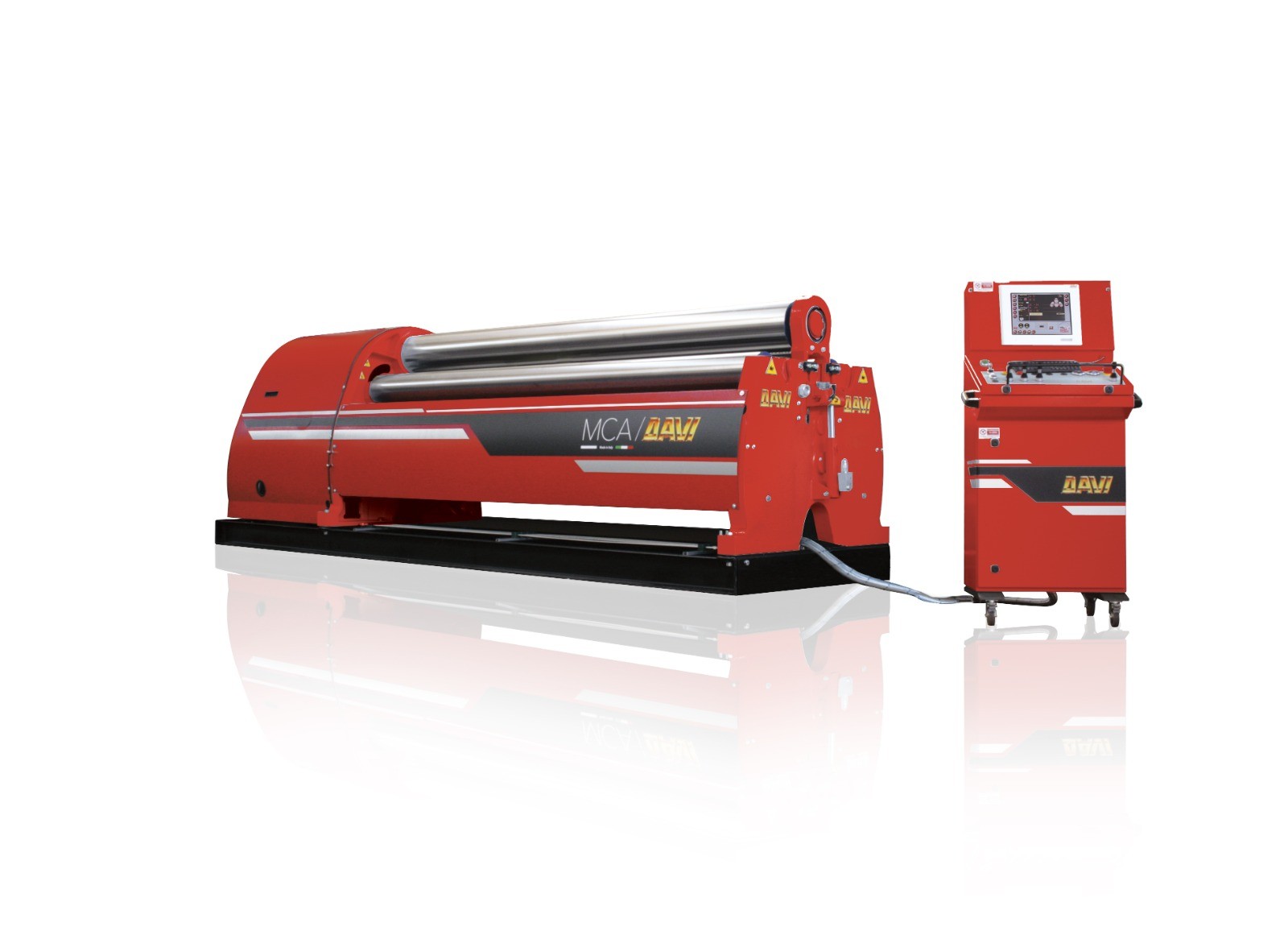

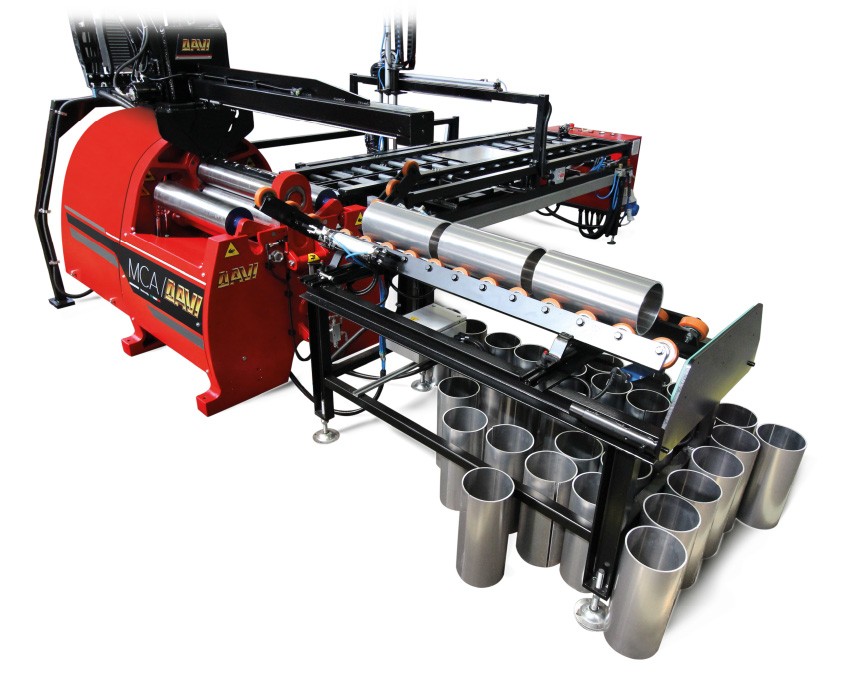

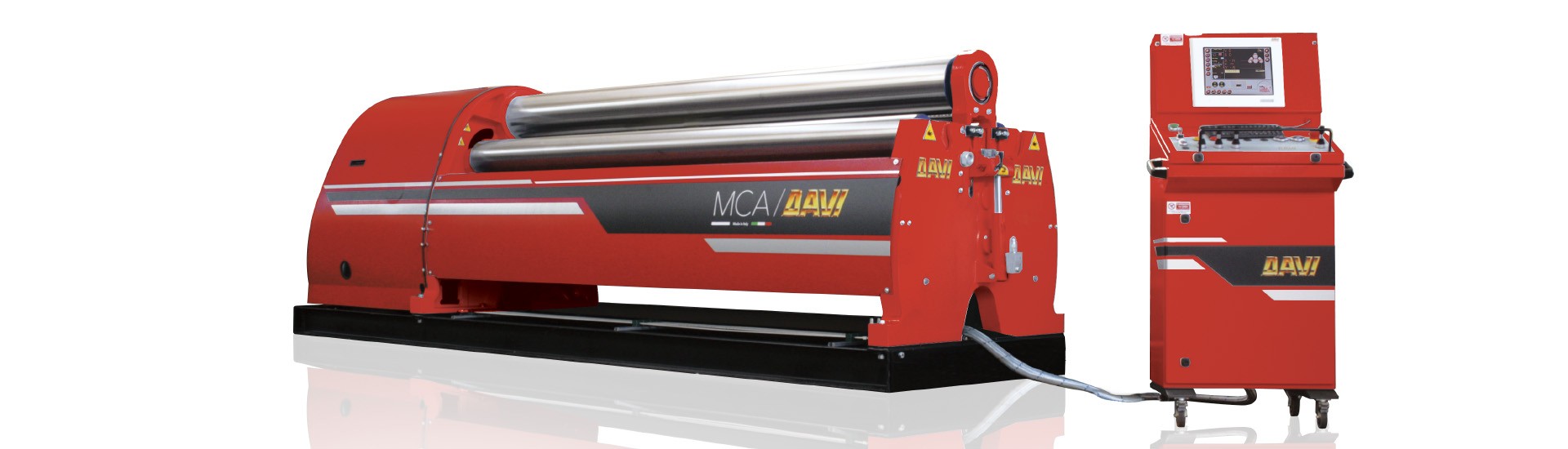

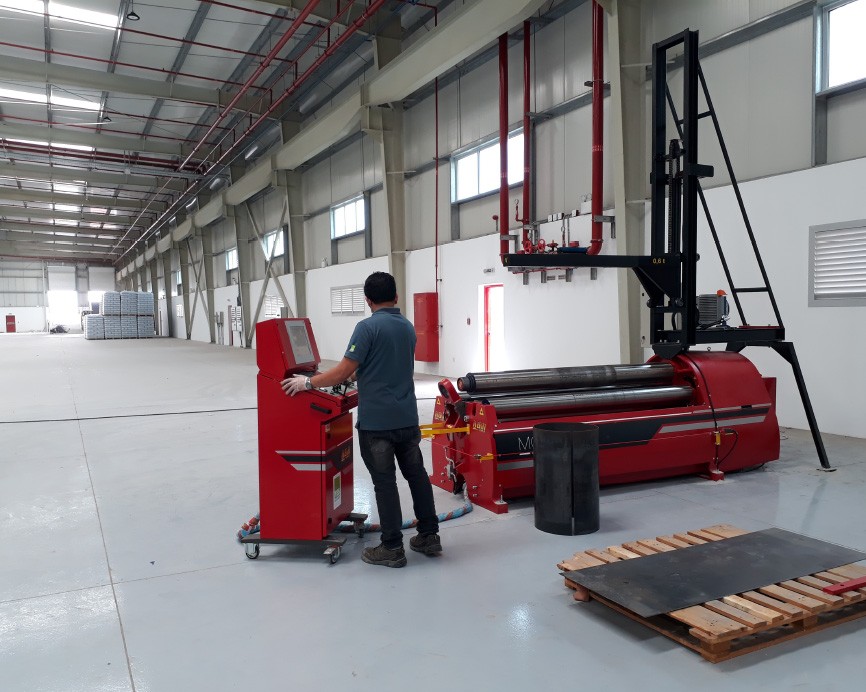

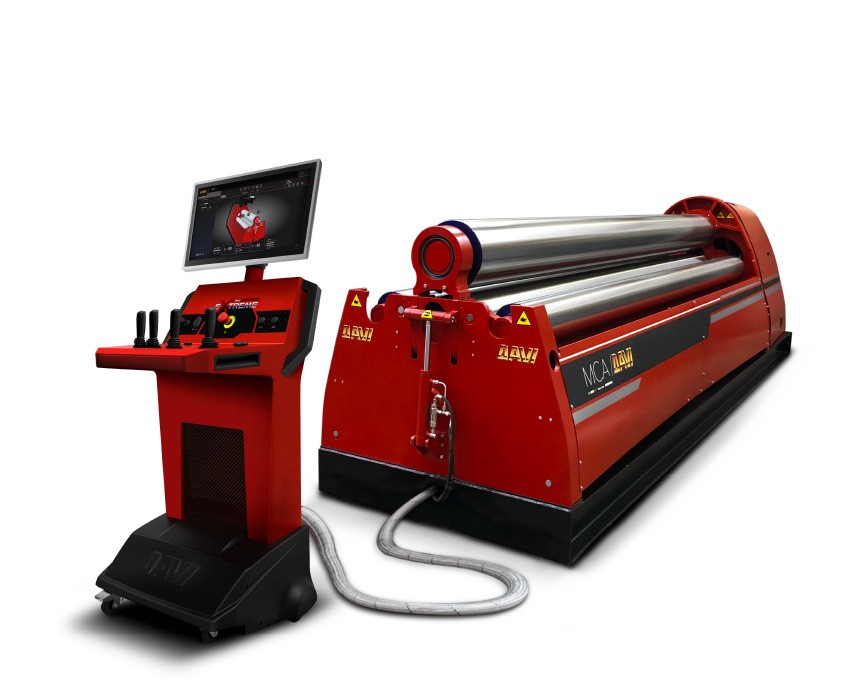

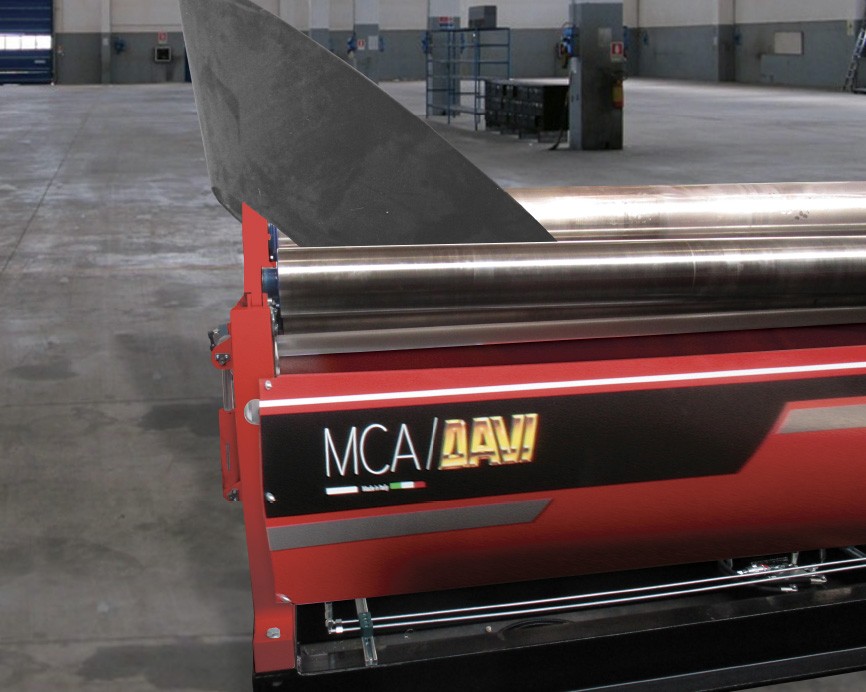

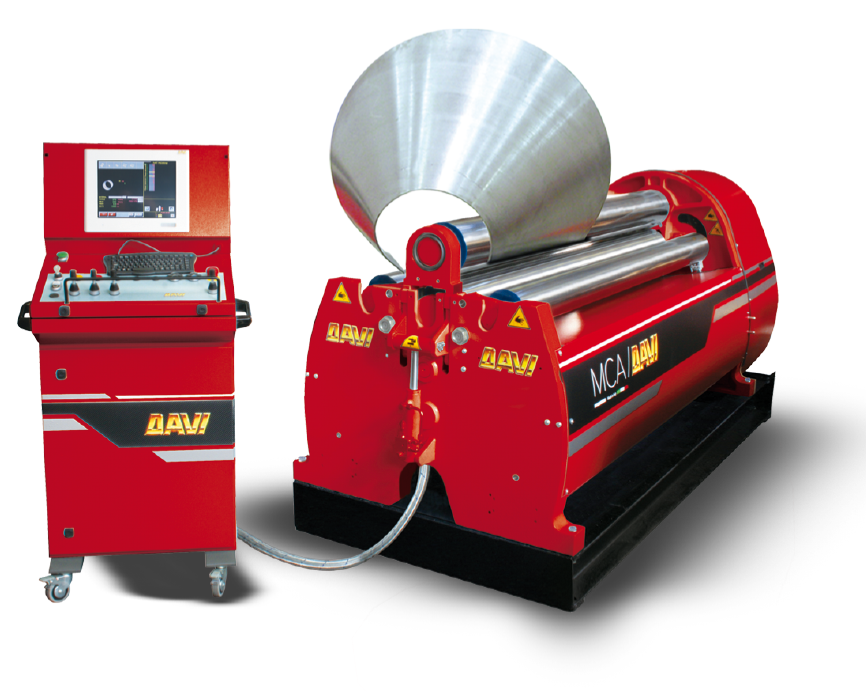

With its innovative and posh design, MCA allows for the rolling of plates up to 10 - 15 mm thickness. It's precise, easy, and rapid. As far as light gauge is concerned, it is the most high-tech plate roll to date. It is controlled by an easy and user-friendly CNC that allows you to roll plates automatically. As we go up the scale, much more powerful DAVI CNCs will be self-programmable and will not need an external operator.

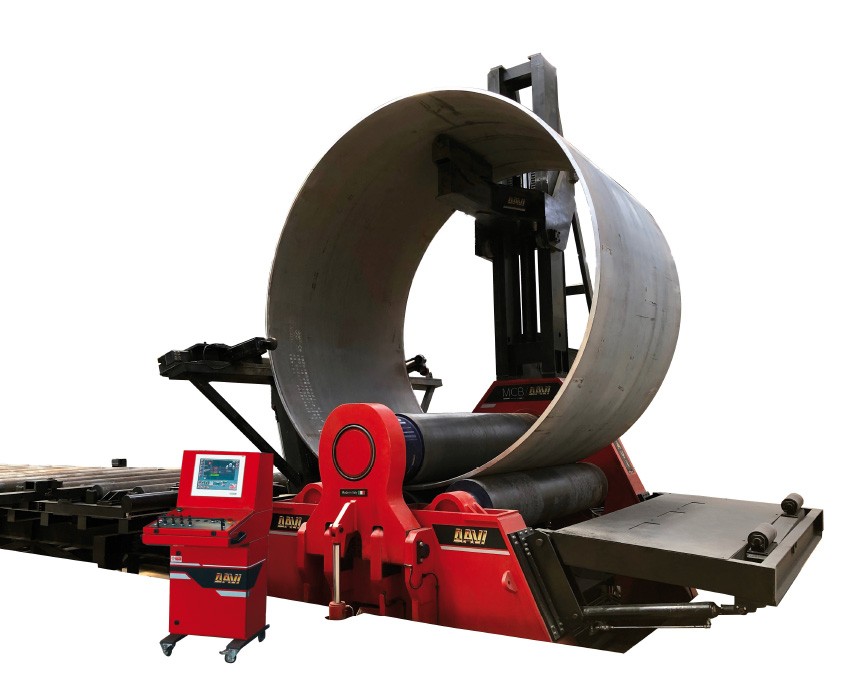

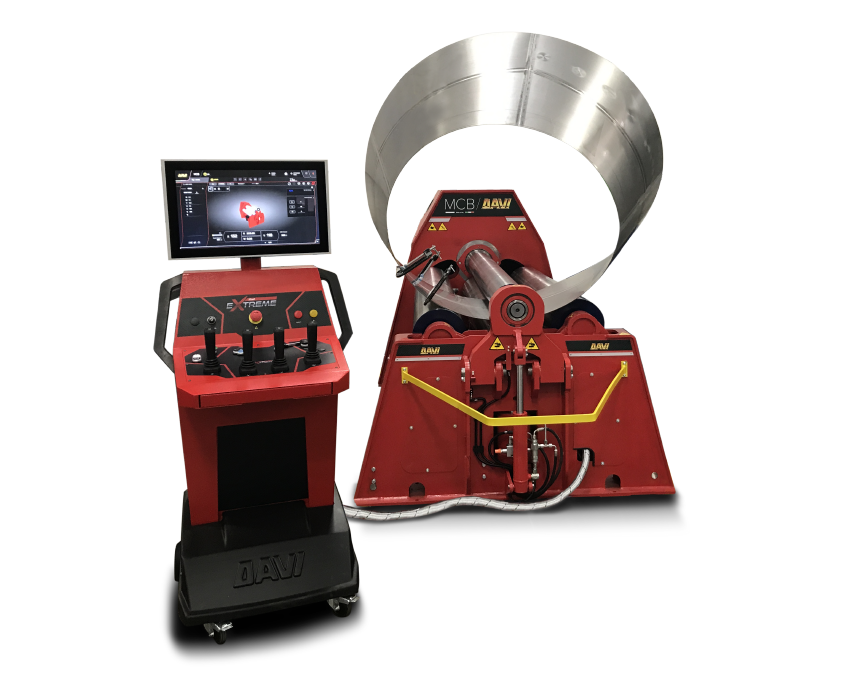

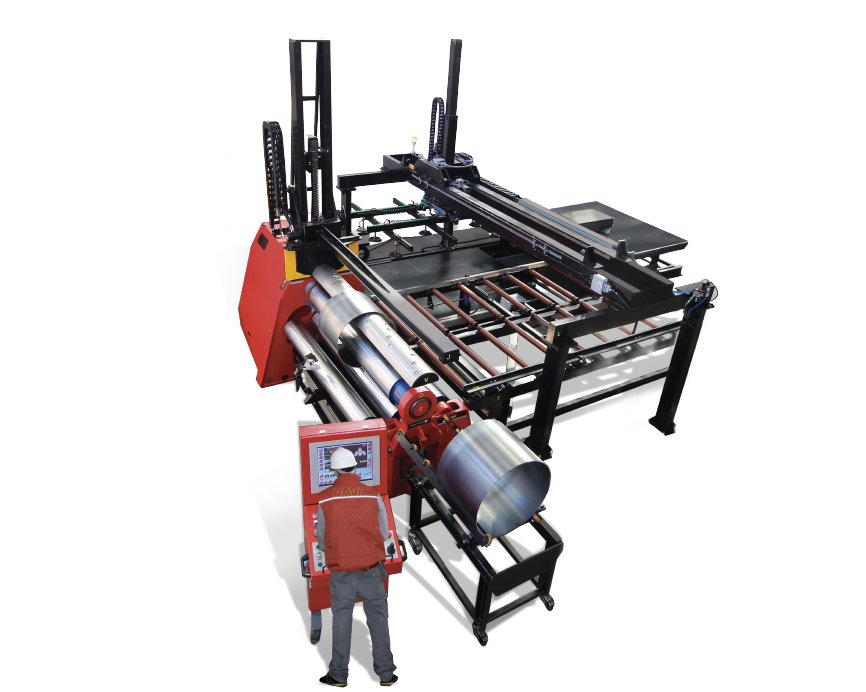

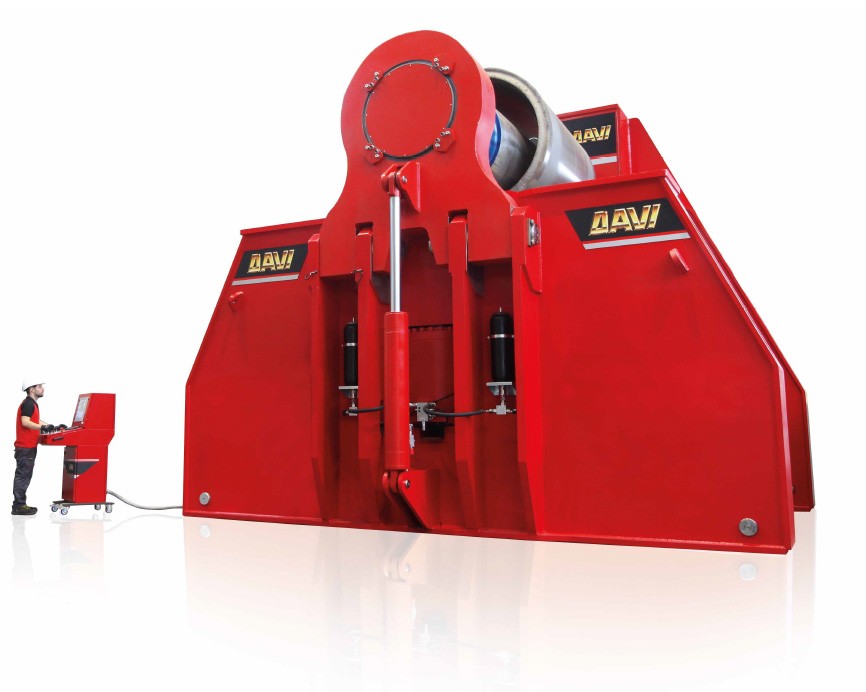

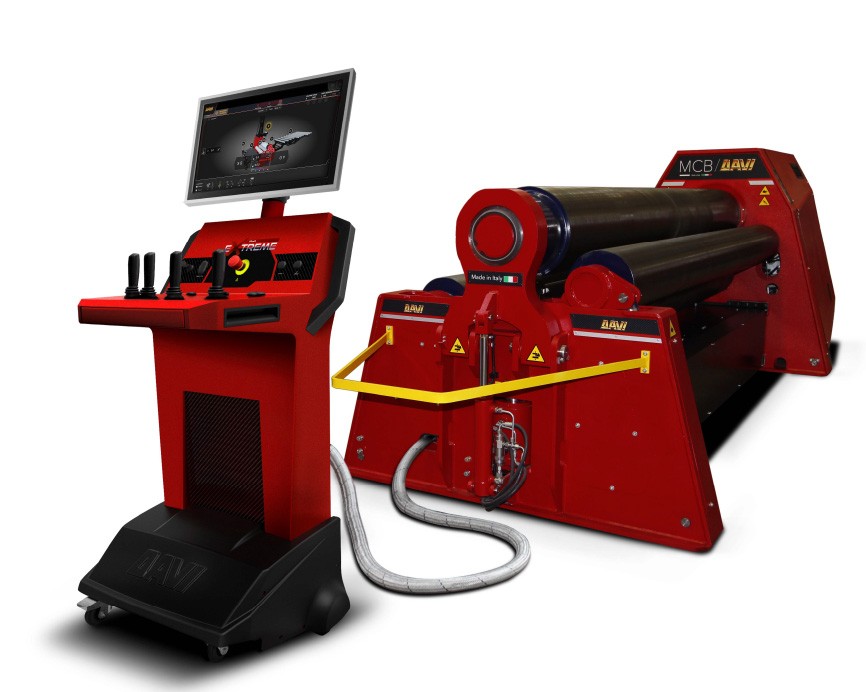

On the other side, we have the MCB, which offers the best machines to roll plates (15-20 mm up to 80-100 mm) of thickness and beyond. They are precise and rapid and can go up to 6 meters (20 ft) per minute. Yes, it indeed is the best high-tech, top-of-the-line plate rolling machine available in the market.

We provide Plate rolling machines in Saudi Arabia from Davi,Italy. For product inquiries and technical consultation reach us at +966562561866 sales@yesmachinery.ae

Our Manufacturer

A company with over 10,000 machines up and running worldwide, DAVI’s motto is “always on time.” They have 11,000 OEM parts and impressive component warehouses to chunk in humongous productions, and they can build 300 machines annually. They always keep 100 of them ready to deliver to the customers at any time, which allows them to deliver rapidly. They are made in Italy, and as an icing on the cake, they are ISO-certified.
