Double Column Machines

Double Column machines are high-performance milling machines, particularly developed for heavy-duty industrial machining. Its key part is two solid vertical columns that offer stability and precision in fast, high-volume machining operations.

With a double column machining center and CNC technology, the overall movement becomes smoother and extremely accurate across all three axes. At YES Machinery, you can explore TOP-ONE’s exceptional Taiwanese range of double column machining centers along with double column grinding machines.

Manufacturing of large and heavy parts is done effectively using Double Column Machines. Built sturdy with thick columns and solid base that maintains a balance while working on bulky workpieces, these machines are designed to offer more control, precision, and power. Additionally equipped with CNC tech, the movement through all the three axes are enabled.

Key Features

- Laser calibration

- Dual-axis rotation allows the machining of five faces in a single setup without the need for workpiece repositioning

- Stable beam support with linear guides

- Balanced head movement, minimized noise and vibration

- Two-speed gearbox for smooth switching between spindle speeds

- Spindle oil cooler for temperature maintenance and high durability

We have two models now at disposal:

1. Double Column Machining Centers
2. Double Column Grinding Machines

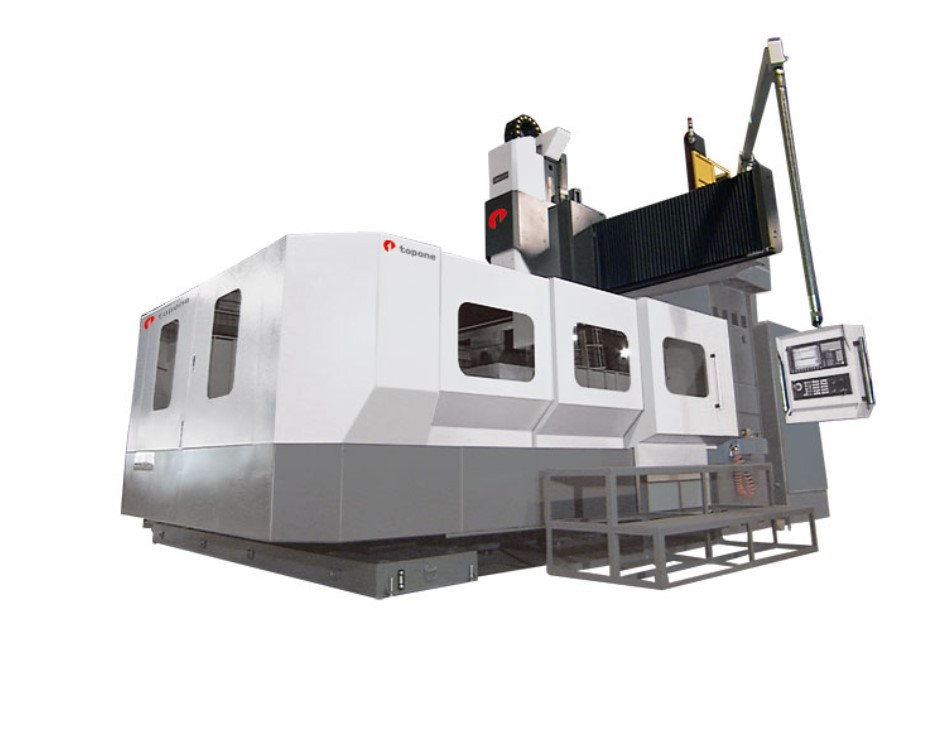

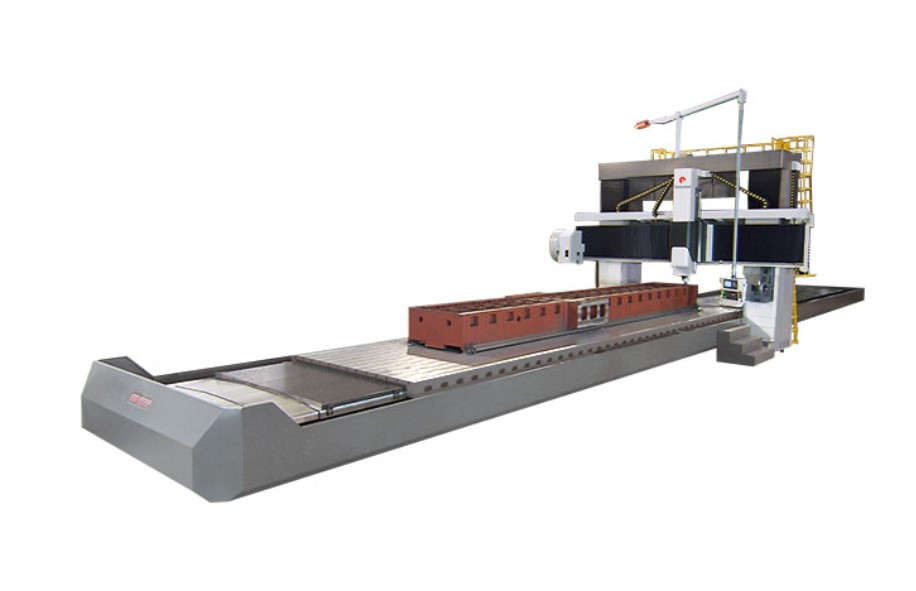

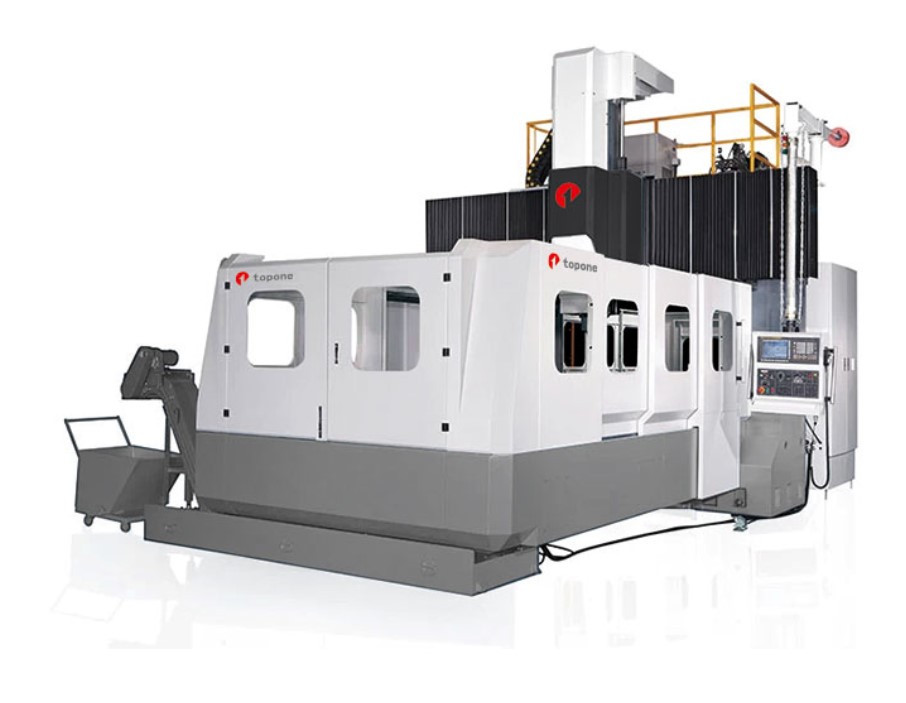

It is available in SPseries, FS series and SK series

Each series is designed to offer smooth performance and top-tier accuracy, even while handling complex tasks.

Features:

  > Stable and cool spindle setup

The spindle head is positioned close to the z-axis, which ensures that it wouldn't bend or shift easily when cut from sideways. Powered by a sturdy motor, it has a unique rectangular gearbox which maintains the temperature even, which in turn aids in less heat formation, less distortion and more precise work.

  > Two-speed gearbox

It is now easier to switch between low and high spindle speeds. These gears are carefully treated and ground, which renders silent operation that will last a long time.

  > Spindle oil cooler

This machine has a built-in oil cooler which maintains things at the optimal temperature, which aids the spindle and the gearbox to last longer without compromising the accuracy.

  > Ease of head movement with no excess noise

The weight of the spindle head is balanced by the combination of hydraulic power and nitrogen gas. This setup minimizes noise, reduces vibration and enables the smooth movement of the head.

  > Stable Beam Support

The support system on the beam is in the model of a ladder, with heavy-duty linear guides, with three blocks on each side. This setup keeps the spindle steady, especially when it's moving along the Y-axis.

  > Flexible Milling Head

The universal milling head is built to be tough, precise and fast. It has dual axis rotation with a 2.5° accuracy, which makes it an ideal choice while working on multi-sided parts or moulds. It is also possible to machine five faces in a single step, without having the need to move the workpiece, thus saving time and increasing the accuracy.

  > Laser Calibration for accuracy

Every single machine undergoes a laser-checking, which tests for the alignment, repeatability, pitch and backlash.

  > Heavy-load bearing support

A double-V shaped slideway with a smart rib reinforcement is used along the X-axis, which helps the table to handle heavy loads without drifting or shaking.

  > Hydraulic support on W-axis

A dual hydraulic system backs the W-Axis, which ensures smooth up and down movement even under load.

  > Swift Tool Changing

The automatic tool changer carries out the task of swapping the tools with such a pace and efficiency, thereby reducing work downtime.

TOP-ONE’s Double Column Machining Centers are designed to take up complex jobs. From mold making to heavy-duty industrial parts, these machines become the hallmark of top-tier strength, accuracy and advanced technology.
